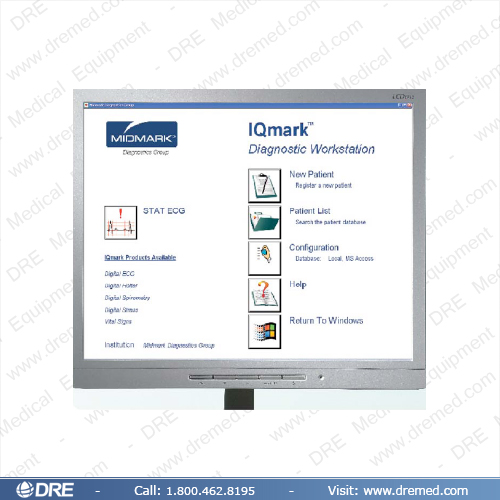

Midmark IQmark Estaci

The IQmarkTM Diagnostic Workstation Software offers a complete Patient Data Management Software System that digitally stores many different diagnostic tests for your patients. Designed with Microsoft's open-architecture products in mind, our software offers capabilities such as EMR integration (using ActiveX controls), networking, central database (MS SQL Server) and Access database options. The storage of physiological measurements include: ECG, Spirometry, Holter, and temperature, blood pressure, pulse rate and pulse oximetry (when connected to a supported vital signs monitors) as well as weight capture using a supported digital scale.

How it all fits together

As an entry level Electronic Patient Record (EPR), the Diagnostic Workstation allows the physician to store, review, edit and delete all diagnostic tests acquired through the Workstation. In addition, the doctor can store patient demographics for quick retrieval for re-testing or analysis. If the doctor has a network in place, the Workstation will give him the capability to review tests in the comfort of his office while the staff is acquiring data in examination rooms.

If they only want to test and have someone else over-read and analyze the results, they can email the tests to a colleague.

The interfaces to additional modalities will make the Workstation a central, necessary software package in the physician's office.

Vital Signs Workstation

For users that already have a supported vital signs monitor (NiBP, temperature, pulse rate, SpO2, weight scale, etc), the Workstation will only allow them to acquire data from the monitors and then display the results. Weight can also be digitally acquired from A&D™, Tanita™ or seca™ scales.

What is the Workstation Software?

The Diagnostic Workstation can be defined as the following:

• Entry-level EPR for diagnostic tests — All users have the same privileges.
• Storage and management software for patient demographics and test results.
• Network capability — Multi-users each with full access to files.
• Transfer capability — Email, send to file, archive, delete, etc.
• Patient test data can be digitally incorporated into your future EMR — eliminating paper now and manual scanning in the future.
• Allows interface to multiple modalities:
  • IQmark Digital ECG
  • IQmark Digital Spirometry
  • IQmark Digital Holter Systems
  • Temperature
  • NiBP - Non-invasive Blood Pressure
  • SpO2 - Pulse Oximetry
  • Static Pulse Rate
  • Weight
